Project car: 1992 Chevy Camaro RS
1992 Chevrolet Camaro RS 25th Anniversary Edition
Paint: Bright Red base/clear with black vinyl hood and trunk stripes
Interior: Black and grey with yellow lettering
Original Invoice MSRP $12,075 (with options $16,137)
Original production (RS w/V8 39,142)
Van Nuys, CA
Engine:
305 cubic inch (5.0 liter) L03 V8
Two barrel throttle body fuel injection
Compression ratio: 9.3:1
Factory rated: horsepower 170 @ 4000 rpm
torque 255 @ 2400 rpm
Fuel Economy 18 City 27 Highway
Drivetrain:
700-R4 4-speed automatic overdrive transmission
with locking torque converter
GM 10-bolt 7.5" 2:73 to 1 gear ratio open differential rear axle
Aluminum and red 16 inch wheels (stock 5-spoke with center bolt covers)
BF Goodrich G-force Super Sport A/S 245-50/R16 tires
Chassis and suspension:
Front: Coil springs, Macpherson strut (with lower A-arms), and anti-sway
bar
Rear: Coil springs, parallel 2-link solid rear axle, with panhard bar, torque
arm, anti-sway bar, and gas charged shock absorbers
Steering: Power assisted steering box, with pitman arm, idler arm,
Center link and inner and outer tie rod ends.
Brakes: front 10.5" disc brakes, single piston cast-iron floating caliper.
rear drum brakes with integral e-brake.
Modifications:

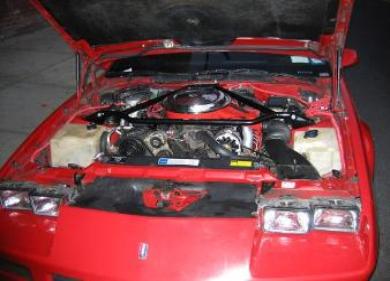

Edelbrock tubular 3-point strut-tower brace
Spohn Performance 34mm front sway bar (solid 4130), 25mm rear
sway bar (solid 4130), and transverse steering brace bar
Hotchkis Performance adjustable panhard bar
Hotchkis Performance square tube rear control arms
Polyurethane busings on all above
Bosch platinum+4 spark plugs
Edelbrock polished aluminum victor series water pump
Chrome Chevrolet valve covers
Edelbrock Chrome air cleaner lid
Red painted air cleaner base with K&N air filter
Clear marker lights front and side

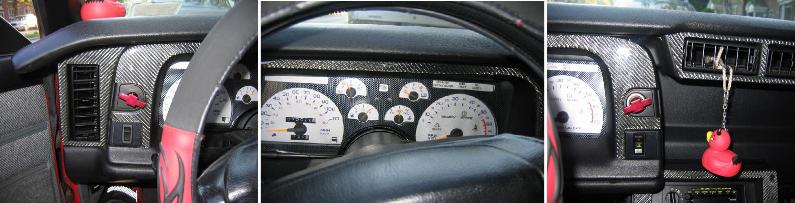

EL White face gauges
Billet Bowtie cigarette lighter and light switch
Custom seat covers
